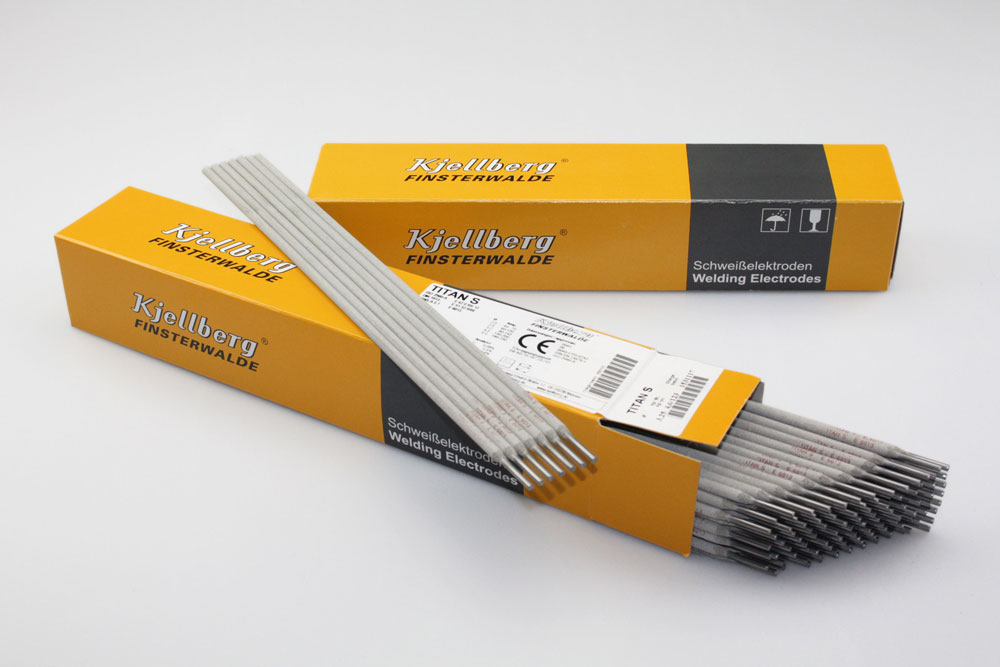

TITAN S

Titan S is ideal for a wide range of applications in industry and craft. It is especially suited for joint welding of unalloyed and low-alloyed steels in vehicle, container, boiler and pipeline construction, ship building, steel construction and mechanical engineering. The electrode has excellent ignition properties and produces a smooth arc and low spatter. The seam surface is finely rippled and smooth, the slag is mostly self-lifting. Titan S allows flat concave fillets.

Inquire Now

Standards:

DIN EN ISO 2560-A E 42 0 RR 12
AWS A 5.1 E 6013
Construction steel S235 to S355
Ship steel A32/36, D32/36, A40, D40
Pressure tank steel S275 to S355
Pipe steel P195 to P355
Cast steel L210 to L360
Stahlguss GE200, GE240, GP 240, G21Mn5
Reinforcing steel BSt 420, BSt 500

PA      PB     PC      PD      PF

Type of current AC
DC negative pole
Diameter 2.0 mm
2.5 mm
3.25 mm
4.0 mm
5.0 mm
Weld Metal Composition C Si Mn
  0.08 % 0.4 % 0.6 %

Deutsche Bahn    TÜV    CE Conformité Européenne
