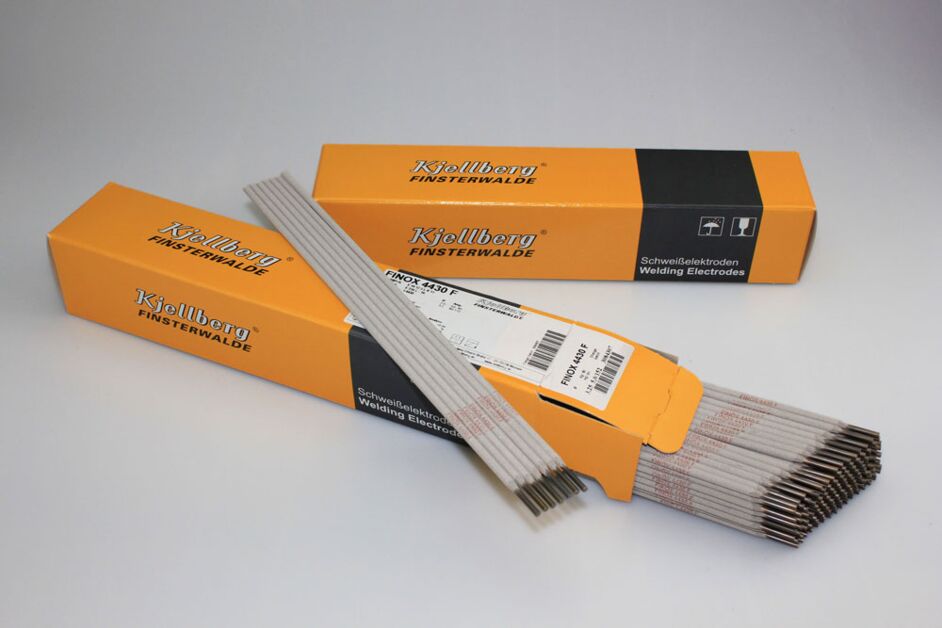

The electrode Finox 4430 F is suited for joint welding on low-carbon, unstabilised and stabilised, austenitic, chemically stable chromium-nickel-molybdenum steels at working temperatures of up to 400 °C. It is also suited for corrosion-resistant chromium steel and platings of similar alloy. This stainless steel electrode was especially developed for welding in vertical down position.
DIN EN ISO 3581-A | E 19 12 3 L R 11 |
AWS A 5.4 | E 316 L-16 |
Material no. | 1.4430 |
1.4401 | X 5 CrNiMo 17-12-2 |
1.4404 | X 2 CrNiMo 17-12-2 |
1.4406 | X 2 CrNiMoN 17-11-2 |
1.4408 | GX 5 CrNiMo 19-11-2 |
1.4409 | GX 2 CrNiMo 19-11-2 |
1.4429 | X 2 CrNiMoN 17-13-3 |
1.4435 | X 2 CrNiMo 18-14-3 |
1.4436 | X 3 CrNiMo 17-13-3 |
1.4571 | X 6 CrNiMoTi 17-12-2 |
1.4580 | X 6 CrNiMoNb 17-12-2 |
- | AISI 316 |
- | AISI 316L |
- | AISI 316Cb |
- | AISI 316Ti |
Type of current | AC DC plus pole |
||||||
Diameter | 2.5 mm 3.25 mm |
||||||
Weld Metal Composition | C | Si | Mn | Cr | Ni | Mo | Structure |
0.02 % | 0.9 % | 0.8 % | 19% | 12.5 % | 2.7 % | Austenite with approx. 8 % ferrite |
