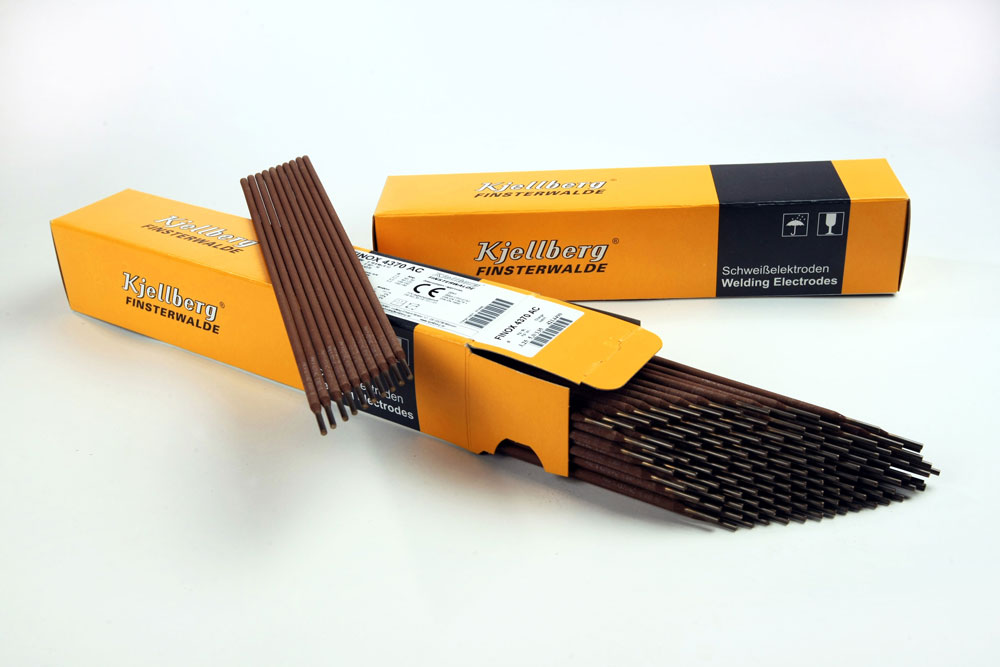

FINOX 4370 AC
Finox 4370 AC is an electrode for joint welding of unalloyed and low-alloyed steels with high-alloyed steel, cast steel types and for austenite-ferrite-joints at working temperatures of up to 300 °C. This stick electrode is suited for welding of difficult-to-weld steel with high carbon content as well as austenitic manganese steel, for buffering layers and for wear-resistant surfacing when exposed to work-hardening shock, pressure and rolling load. The weld metal is fully austenitic, corrosion-resistant, scale-resistant up to 850 °C and can be work-hardened up to a hardness of 350 HB.
Standards:
| DIN EN ISO 3581-A | E 18 8 Mn R 12 |
| AWS A 5.4 | ≈ E 307-16 |
| Material no. | 1.4370 |
- Black-and-white joints (Construction Steel and stainless steels)
- Manganese Hard Steel
- High-strength, alloyed and unalloyed heat-treated steel
- Steels with a higher carbon content
- Intermediate layers for hard-surfacing
| Type of current | AC DC plus pole |
|||||
| Diameter |
2.5 mm |
|||||
| Weld Metal Composition | C | Si | Mn | Cr | Ni | Structure |
| 0.1 % | 0.9 % | 6 % | 19 % | 9 % | Austenite | |
