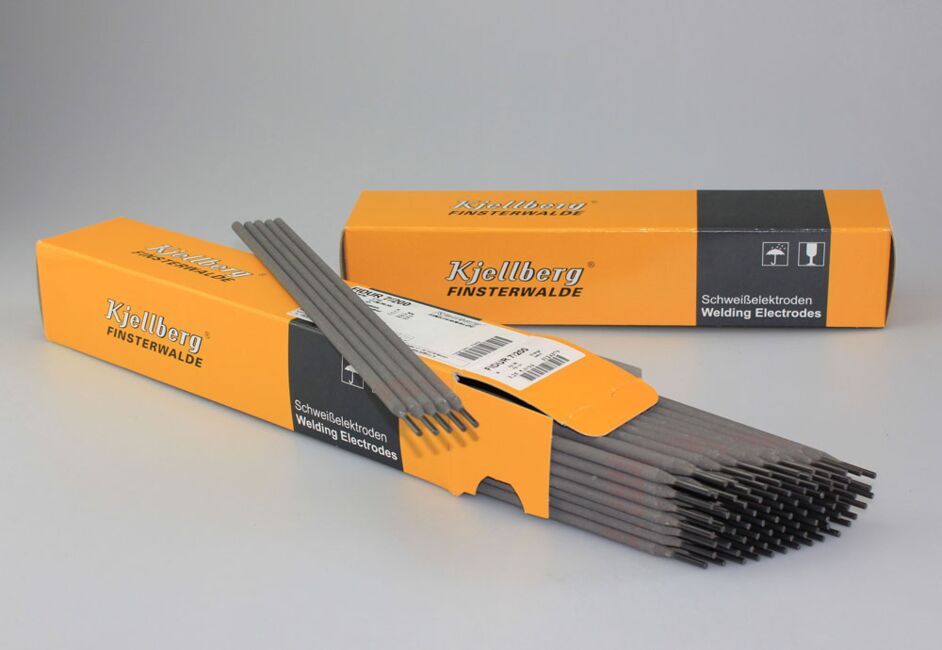

FIDUR 7/200
The austenitic hard-manganese steel electrode Fidur 7/200 is suited for wear-resistant surfacings on materials and machine parts from hard-manganese steel, for example digging teeth, blow bars, crushing jaws, rail frogs and crossing pieces which are mainly impact and shock-loaded. The weld metal has in welding condition a hardness of 200 HB which can be increased up to 500 HB by work-hardening under mechanical strain.
Standards:
| DIN EN 14700 | E Fe9 |
| DIN 8555 | E 7-UM-200-500 KP |
| Type of current | AC DC plus pole |
|||
| Diameter | 3.25 mm 4.0 mm 5.0 mm |
|||
| Weld Metal Composition | C | Si | Mn | Cr |
| 0.8 % | 0.5 % | 16 % | 14 % | |
