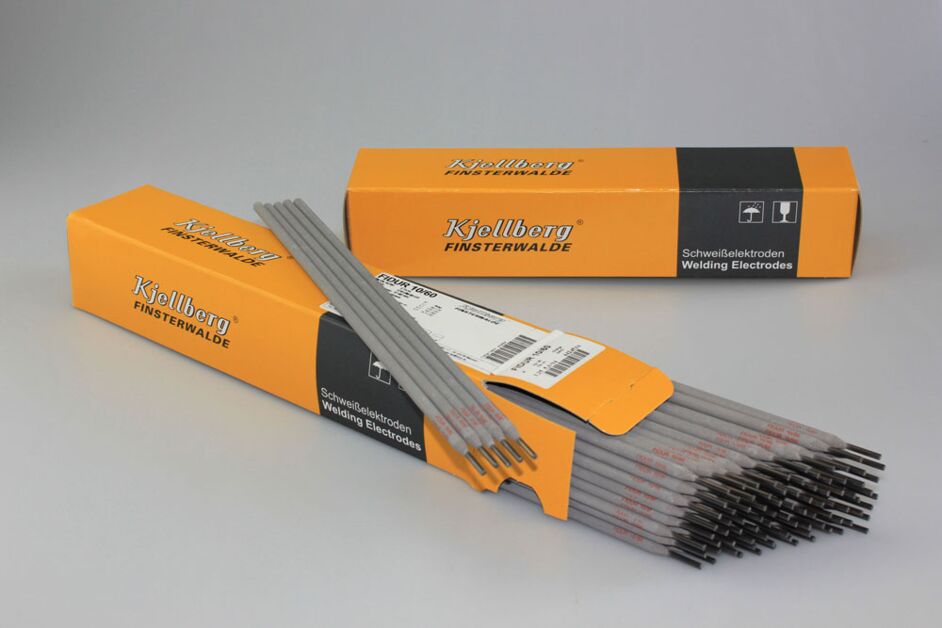

FIDUR 10/60
Fidur 10/60 is the electrode for highly wear-resistant surfacings on unalloyed and low-alloyed metals of higher strength, especially when heavily abrasion-loaded and exposed to moisture. This stick electrode is especially suited for surfacings on mixer and agitator arms, crushing mills, conveyor screws, guideways, slides and skids. Surfacings should be applied in two layers only. For higher surfacings it is recommended to fill them up with FIDUR 8/200 or FINOX 4370 AC/B beforehand. The rustless ledeburitic weld metal is workable by grinding only.
Standards:
| DIN EN 14700 | E Fe14 |
| DIN 8555 | E 10-UM-60 GR |
| Type of current | AC DC plus pole |
||||
| Diameter | 2.5 mm 3.25 mm 4.0 mm 5.0 mm |
||||
| Weld Metal Composition | C | Si | Mn | Cr | Other |
| 3.8 % | 0.9 % | 0.4 % | 33 % | 2 % | |
