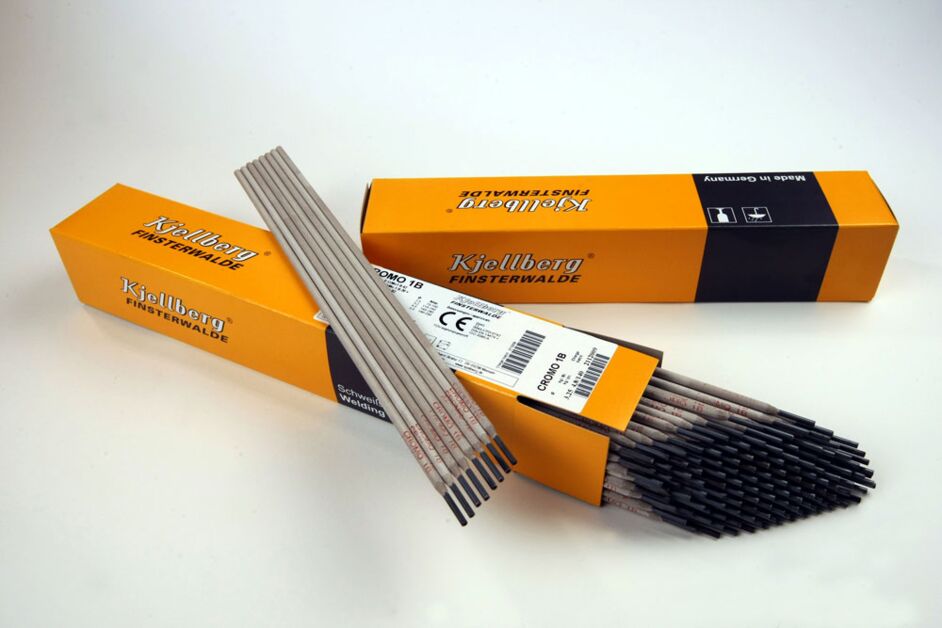

CROMO 1B
Cromo 1B is the electrode for joint welding on boiler and pipe steel as well as similar chromium-molybdenum-alloyed, pressure-hydrogen-resistant steel. Preferrably, this stick electrode is used for the steel 13CrMo4-5 at working temperatures of up to 550 °C. Further, it is well suited for joint welding and surfacing on similar-alloyed case-hardened and heat-treated steel.
Standards:
| DIN EN ISO 3580-A | E CrMo 1 B 42 |
| AWS A 5.5 | E 8018-B2 |
| 1.7218 | 25 CrMo 4 | |
| 1.7218 | G 25 CrMo 4 | |
| 1.7254 | 20 CrMo 4 | |
| 1.7258 | 24 CrMo 5 | |
| 1.7262 | 15 CrMo 5 | |
| 1.7335 | 13 CrMo 4-5 | |
| 1.7337 | 16 CrMo 4-4 | |
| 1.7350 | 22 CrMo 4-4 | |
| 1.7354 | G22 CrMo 5-4 |
| Type of current | DC plus pole | ||||
| Diameter | 2.5 mm 3.25 mm 4.0 mm |
||||
| Weld Metal Composition | C | Si | Mn | Cr | Mo |
| 0.08 % | 0.4 % | 1.0 % | 1.0 % | 0.5 % | |
